React 进阶

1) Ant Design​

react 组件库

入门​

安装

npm install antd
  • 目前版本是 4.x

引入样式，在 css 文件中加入

@import '~antd/dist/antd.css';

引入 antd 组件

import { Button } from "antd";

export default function A1() {
  return <Button type='primary'>按钮</Button>
}

国际化​

试试其它组件

import { Button, Modal } from "antd";

export default function A1() {
  return <Modal open={true} title='对话框'>内容</Modal>
}

发现确定和取消按钮是英文的，这是因为 antd 支持多种语言，而默认语言是英文

要想改为中文，建议修改最外层的组件 index.tsx

// ...
import { ConfigProvider } from 'antd'
import zhCN from 'antd/es/locale/zh_CN'

root.render(
  <ConfigProvider locale={zhCN}>
    <A1></A1>
  </ConfigProvider>
)

表格​

import { Table } from 'antd'
import { ColumnsType } from 'antd/lib/table'
import axios from 'axios'
import { useEffect, useState } from 'react'
import { R, Student } from '../model/Student'

export default function A3() {
  const [students, setStudents] = useState<Student[]>([])
  const [loading, setLoading] = useState(true)

  useEffect(() => {
    async function getStudents() {
      const resp = await axios.get<R<Student[]>>(
        'http://localhost:8080/api/students'
      )
      setStudents(resp.data.data)
      setLoading(false)
    }

    getStudents()
  }, [])

  // title: 列标题  dataIndex: 要关联的属性名
  const columns: ColumnsType<Student> = [
    {
      title: '编号',
      dataIndex: 'id',
    },
    {
      title: '姓名',
      dataIndex: 'name',
    },
    {
      title: '性别',
      dataIndex: 'sex',
    },
    {
      title: '年龄',
      dataIndex: 'age',
    },
  ]

  // columns: 列定义
  // dataSource: 数据源，一般是数组包对象
  // rowKey: 作为唯一标识的属性名
  // loading: 显示加载图片
  return (
    <Table
      columns={columns}
      dataSource={students}
      rowKey='id'
      loading={loading}></Table>
  )
}

客户端分页​

import { Table } from 'antd'
import { ColumnsType, TablePaginationConfig } from 'antd/lib/table'
import axios from 'axios'
import { useEffect, useState } from 'react'
import { R, Student } from '../model/Student'

export default function A3() {
  const [students, setStudents] = useState<Student[]>([])
  const [loading, setLoading] = useState(true)
  const [pagination, setPagination] = useState<TablePaginationConfig>(
    {current:1, pageSize:5}
  )

  // 参数: 新的分页数据
  function onTableChange(newPagination: TablePaginationConfig) {
    setPagination(newPagination)
  }

  useEffect(() => {
    async function getStudents() {
      const resp = await axios.get<R<Student[]>>(
        'http://localhost:8080/api/students'
      )
      setStudents(resp.data.data)
      setLoading(false)
    }

    getStudents()
  }, [])

  // ... 省略

  // pagination: 分页数据
  // onChange: 当页号，页大小改变时触发
  return (
    <Table
      columns={columns}
      dataSource={students}
      rowKey='id'
      loading={loading}
      pagination={pagination}
      onChange={onTableChange}></Table>
  )
}
  • 本例还是查询所有数据，分页是客户端 Table 组件自己实现的

服务端分页​

import { Table } from 'antd'
import { ColumnsType, TablePaginationConfig } from 'antd/lib/table'
import axios from 'axios'
import { useEffect, useState } from 'react'
import { PageResp, R, Student } from '../model/Student'

export default function A4() {
  const [students, setStudents] = useState<Student[]>([])
  const [loading, setLoading] = useState(true)
  const [pagination, setPagination] = useState<TablePaginationConfig>({
    current: 1,
    pageSize: 5,
  })

  function onTableChange(newPagination: TablePaginationConfig) {
    setPagination(newPagination)
  }

  useEffect(() => {
    async function getStudents() {
      // params 用来给请求添加 url 后的 ? 参数
      const resp = await axios.get<R<PageResp<Student>>>(
        'http://localhost:8080/api/students/q',
        {
          params: {
            page: pagination.current,
            size: pagination.pageSize,
          },
        }
      )
      // 返回结果中：list 代表当前页集合, total 代表总记录数
      setStudents(resp.data.data.list)
      setPagination((old) => {
        return { ...old, total: resp.data.data.total }
      })
      setLoading(false)
    }

    getStudents()
  }, [pagination.current, pagination.pageSize])
  // useEffect 需要在依赖项( current 和 pageSize ) 改变时重新执行

  const columns: ColumnsType<Student> = [
    {
      title: '编号',
      dataIndex: 'id',
    },
    {
      title: '姓名',
      dataIndex: 'name',
    },
    {
      title: '性别',
      dataIndex: 'sex',
    },
    {
      title: '年龄',
      dataIndex: 'age',
    },
  ]

  return (
    <Table
      columns={columns}
      dataSource={students}
      rowKey='id'
      loading={loading}
      pagination={pagination}
      onChange={onTableChange}></Table>
  )
}
  • 本例需要服务端配合来实现分页，参见代码中新加的注释

其中 PageResp 类型定义为

export interface PageResp<T> {
  list: T[],
  total: number
}

条件查询​

import { Input, Select, Table } from 'antd'
import { ColumnsType, TablePaginationConfig } from 'antd/lib/table'
import axios from 'axios'
import React, { useEffect, useState } from 'react'
import { PageResp, R, Student, StudentQueryForm } from '../model/Student'

const { Option } = Select

export default function A5() {
  const [students, setStudents] = useState<Student[]>([])
  const [loading, setLoading] = useState(true)
  const [pagination, setPagination] = useState<TablePaginationConfig>({
    current: 1,
    pageSize: 5,
  })
  // 代表查询条件的状态数据
  const [form, setForm] = useState<StudentQueryForm>({})

  function onTableChange(newPagination: TablePaginationConfig) {
    setPagination(newPagination)
  }

  useEffect(() => {
    async function getStudents() {
      const resp = await axios.get<R<PageResp<Student>>>(
        'http://localhost:8080/api/students/q',
        {
          params: {
            page: pagination.current,
            size: pagination.pageSize,
            ...form // 补充查询参数
          },
        }
      )
      setStudents(resp.data.data.list)
      setPagination((old) => {
        return { ...old, total: resp.data.data.total }
      })
      setLoading(false)
    }

    getStudents()
  }, [pagination.current, pagination.pageSize, form.name, form.sex, form.age])
  // 依赖项除了分页条件外，新加了查询条件依赖

  const columns: ColumnsType<Student> = [
    {
      title: '编号',
      dataIndex: 'id',
    },
    {
      title: '姓名',
      dataIndex: 'name',
    },
    {
      title: '性别',
      dataIndex: 'sex',
    },
    {
      title: '年龄',
      dataIndex: 'age',
    },
  ]

  // name 条件改变时处理函数
  function onNameChange(e: React.ChangeEvent<HTMLInputElement>) {
    setForm((old)=>{
      return {...old, name: e.target.value}
    })
  }

  // sex 条件改变时处理函数
  function onSexChange(value: string) {
    setForm((old)=>{
      return {...old, sex: value}
    })
  }

  // age 条件改变时处理函数
  function onAgeChange(value: string) {
    setForm((old)=>{
      return {...old, age: value}
    })
  }

  return (
    <div>
      <div>
        <Input
          style={{ width: 120 }}
          placeholder='请输入姓名'
          value={form.name}
          onChange={onNameChange}></Input>
        <Select
          style={{ width: 120 }}
          placeholder='请选择性别'
          allowClear={true}
          value={form.sex}
          onChange={onSexChange}>
          <Option value='男'>男</Option>
          <Option value='女'>女</Option>
        </Select>
        <Select
          style={{ width: 120 }}
          placeholder='请选择年龄'
          allowClear={true}
          value={form.age}
          onChange={onAgeChange}>
          <Option value='1,19'>20以下</Option>
          <Option value='20,29'>20左右</Option>
          <Option value='30,39'>30左右</Option>
          <Option value='40,120'>40以上</Option>
        </Select>
      </div>
      <Table
        columns={columns}
        dataSource={students}
        rowKey='id'
        loading={loading}
        pagination={pagination}
        onChange={onTableChange}></Table>
    </div>
  )
}
  • 建议 axios 发请求是用 params 而不要自己拼字符串，因为自己拼串需要去掉值为 undefined 的属性

其中 StudentQueryForm 为

export interface StudentQueryForm {
  name?: string,
  sex?: string,
  age?: string,
  [key: string]: any
}

删除​

import { Button, message, Popconfirm } from 'antd'
import axios from 'axios'
import { R } from '../model/Student'

export default function A6Delete({ id, onSuccess }: { id: number, onSuccess:()=>void }) {
  async function onConfirm() {
    const resp = await axios.delete<R<string>>(
      `http://localhost:8080/api/students/${id}`
    )
    message.success(resp.data.data)
    // 改变 form 依赖项
    onSuccess()
  }
  return (
    <Popconfirm title='确定要删除学生吗?' onConfirm={onConfirm}>
      <Button danger size='small'>
        删除
      </Button>
    </Popconfirm>
  )
}

使用删除组件

import { Button, Input, Select, Space, Table } from 'antd'
import { ColumnsType, TablePaginationConfig } from 'antd/lib/table'
import axios from 'axios'
import React, { useEffect, useState } from 'react'
import { PageResp, R, Student, StudentQueryForm } from '../model/Student'
import A6Delete from './A6Delete'

const { Option } = Select

export default function A6() {
  // ... 省略

  function onDeleteSuccess() {
    setForm((old)=>{
      return {...old}
    })
  }

  const columns: ColumnsType<Student> = [
    // ... 省略
    {
      title: '操作',
      dataIndex: 'operation',
      // value: 属性值, student
      render: (_, student)=>{
        return <>
          <Space>
            <A6Delete id={student.id} onSuccess={onDeleteSuccess}></A6Delete>
            <Button type='default' size='small'>修改</Button>
          </Space>
        </>
      }
    }
  ]

  // ... 省略
}

修改​

import { Form, Input, InputNumber, message, Modal, Radio } from 'antd'
import { Rule } from 'antd/lib/form'
import axios from 'axios'
import { useEffect } from 'react'
import { R, Student } from '../model/Student'

export default function A6Update({
  open,
  student,
  onSuccess,
  onCancel,
}: {
  open: boolean
  student: Student
  onSuccess?: () => void
  onCancel?: () => void
}) {
  const { Item } = Form
  const { Group } = Radio
  const options = [
    { label: '男', value: '男' },
    { label: '女', value: '女' },
  ]

  const [form] = Form.useForm() // 代表了表单对象

  const nameRules: Rule[] = [
    { required: true, message: '姓名必须' },
    { min: 2, type: 'string', message: '至少两个字符' },
  ]

  const ageRules: Rule[] = [
    { required: true, message: '年龄必须' },
    { min: 1, type: 'number', message: '最小1岁' },
    { max: 120, type: 'number', message: '最大120岁' },
  ]

  async function onOk() {
    // 验证并获取表单数据
    try {
      const values = await form.validateFields()
      console.log(values)
      const resp = await axios.put<R<string>>(
        `http://localhost:8080/api/students/${values.id}`,
        values
      )
      message.success(resp.data.data)
      onSuccess && onSuccess()
    } catch (e) {
      console.error(e)
    }
  }

  useEffect(() => {
    // 修改表单数据
    form.setFieldsValue(student) // id, name, sex, age
  }, [student])

  return (
    <Modal
      open={open}
      title='修改学生'
      onOk={onOk}
      onCancel={onCancel}
      forceRender={true}>
      <Form form={form}>
        <Item label='编号' name='id'>
          <Input readOnly></Input>
        </Item>
        <Item label='姓名' name='name' rules={nameRules}>
          <Input></Input>
        </Item>
        <Item label='性别' name='sex'>
          <Group
            options={options}
            optionType='button'
            buttonStyle='solid'></Group>
        </Item>
        <Item label='年龄' name='age' rules={ageRules}>
          <InputNumber></InputNumber>
        </Item>
      </Form>
    </Modal>
  )
}
  • forceRender 是避免因为使用 useForm 后，表单套在 Modal 中会出现的警告错误

使用组件

import { Button, Input, Select, Space, Table } from 'antd'
import { ColumnsType, TablePaginationConfig } from 'antd/lib/table'
import axios from 'axios'
import React, { useEffect, useState } from 'react'
import { PageResp, R, Student, StudentQueryForm } from '../model/Student'
import A6Delete from './A6Delete'
import A6Update from './A6Update'

const { Option } = Select

export default function A6() {
  // ... 省略
  const columns: ColumnsType<Student> = [
    // ... 省略
    {
      title: '操作',
      dataIndex: 'operation',
      // value: 属性值, student
      render: (_, student) => {
        return (
          <>
            <Space>
              <A6Delete id={student.id} onSuccess={onDeleteSuccess}></A6Delete>
              <Button
                type='default'
                size='small'
                onClick={() => {
                  onUpdateClick(student)
                }}>
                修改
              </Button>
            </Space>
          </>
        )
      },
    },
  ]

  // -------------- 修改功能开始 -------------
  function onUpdateClick(student: Student) {
    setUpdateOpen(true)
    setUpdateForm(student)
  }

  function onUpdateCancel() {
    setUpdateOpen(false)
  }

  function onUpdateSuccess() {
    setUpdateOpen(false)
    setForm((old) => {
      return { ...old }
    })
  }

  const [updateOpen, setUpdateOpen] = useState(false)
  const [updateForm, setUpdateForm] = useState<Student>({
    id: 0,
    name: '',
    sex: '男',
    age: 18,
  })
  // -------------- 修改功能结束 -------------

  return (
    <div>
      <A6Update
        open={updateOpen}
        student={updateForm}
        onSuccess={onUpdateSuccess}
        onCancel={onUpdateCancel}></A6Update>
      <!-- ... 省略 -->
    </div>
  )
}

新增​

import { Form, Input, InputNumber, message, Modal, Radio } from 'antd'
import { Rule } from 'antd/lib/form'
import axios from 'axios'
import { useEffect } from 'react'
import { R, Student } from '../model/Student'

export default function A6Insert({
  open,
  student,
  onSuccess,
  onCancel,
}: {
  open: boolean
  student: Student
  onSuccess?: () => void
  onCancel?: () => void
}) {
  const { Item } = Form
  const { Group } = Radio
  const options = [
    { label: '男', value: '男' },
    { label: '女', value: '女' },
  ]

  const [form] = Form.useForm() // 代表了表单对象

  const nameRules: Rule[] = [
    { required: true, message: '姓名必须' },
    { min: 2, type: 'string', message: '至少两个字符' },
  ]

  const ageRules: Rule[] = [
    { required: true, message: '年龄必须' },
    { min: 1, type: 'number', message: '最小1岁' },
    { max: 120, type: 'number', message: '最大120岁' },
  ]

  async function onOk() {
    // 验证并获取表单数据
    try {
      const values = await form.validateFields()
      console.log(values)
      const resp = await axios.post<R<string>>(
        `http://localhost:8080/api/students`,
        values
      )
      message.success(resp.data.data)
      onSuccess && onSuccess()
      form.resetFields() // 重置表单
    } catch (e) {
      console.error(e)
    }
  }

  return (
    <Modal
      open={open}
      title='新增学生'
      onOk={onOk}
      onCancel={onCancel}
      forceRender={true}>
      <Form form={form} initialValues={student}>
        <Item label='姓名' name='name' rules={nameRules}>
          <Input></Input>
        </Item>
        <Item label='性别' name='sex'>
          <Group
            options={options}
            optionType='button'
            buttonStyle='solid'></Group>
        </Item>
        <Item label='年龄' name='age' rules={ageRules}>
          <InputNumber></InputNumber>
        </Item>
      </Form>
    </Modal>
  )
}

  • initialValues 只会触发一次表单赋初值
  • form.resetFields() 会将表单重置为 initialValues 时的状态

使用组件

import { Button, Input, Select, Space, Table } from 'antd'
import { ColumnsType, TablePaginationConfig } from 'antd/lib/table'
import axios from 'axios'
import React, { useEffect, useState } from 'react'
import { PageResp, R, Student, StudentQueryForm } from '../model/Student'
import A6Delete from './A6Delete'
import A6Insert from './A6Insert'
import A6SelectedDelete from './A6SelectedDelete'
import A6Update from './A6Update'

const { Option } = Select

export default function A6() {
  // ... 省略

  // -------------- 新增功能开始 -------------
  function onInsertClick() {
    setInsertOpen(true)
  }

  function onInsertCancel() {
    setInsertOpen(false)
  }

  function onInsertSuccess() {
    setInsertOpen(false)
    setForm((old) => {
      return { ...old }
    })
  }

  const [insertOpen, setInsertOpen] = useState(false)
  const [insertForm, setInsertForm] = useState<Student>({
    id: 0,
    name: '',
    sex: '男',
    age: 18,
  })
  // -------------- 新增功能结束 -------------


  return (
    <div>
      <A6Insert
        open={insertOpen}
        student={insertForm}
        onSuccess={onInsertSuccess}
        onCancel={onInsertCancel}></A6Insert>
      <A6Update
        open={updateOpen}
        student={updateForm}
        onSuccess={onUpdateSuccess}
        onCancel={onUpdateCancel}></A6Update>
      <div>
        <Space>
          <Input
            style={{ width: 120 }}
            placeholder='请输入姓名'
            value={form.name}
            onChange={onNameChange}></Input>
          <Select
            style={{ width: 120 }}
            placeholder='请选择性别'
            allowClear={true}
            value={form.sex}
            onChange={onSexChange}>
            <Option value='男'>男</Option>
            <Option value='女'>女</Option>
          </Select>
          <Select
            style={{ width: 120 }}
            placeholder='请选择年龄'
            allowClear={true}
            value={form.age}
            onChange={onAgeChange}>
            <Option value='1,19'>20以下</Option>
            <Option value='20,29'>20左右</Option>
            <Option value='30,39'>30左右</Option>
            <Option value='40,120'>40以上</Option>
          </Select>

          <Button type='primary' onClick={onInsertClick}>新增</Button>
        </Space>
      </div>
      <Table
        columns={columns}
        dataSource={students}
        rowKey='id'
        loading={loading}
        pagination={pagination}
        onChange={onTableChange}></Table>
    </div>
  )
}

删除选中​

import { Button, message, Popconfirm } from "antd";
import axios from "axios";
import React from "react";
import { R } from "../model/Student";

export default function A6DeleteSelected(
  {ids, onSuccess}: {ids:React.Key[], onSuccess?:()=>void} // Key[] 是 number 或 string 的数组
){
  const disabled = ids.length === 0
  async function onConfirm() {
    const resp = await axios.delete<R<string>>('http://localhost:8080/api/students', {
      data: ids
    })
    message.success(resp.data.data)
    onSuccess && onSuccess()
  }
  return (
    <Popconfirm title='真的要删除选中的学生吗?' onConfirm={onConfirm} disabled={disabled}>
      <Button danger type='primary' disabled={disabled}>
        删除选中
      </Button>
    </Popconfirm>
  )
}

与 A6 结合

import { Button, Input, Select, Space, Table } from 'antd'
import { ColumnsType, TablePaginationConfig } from 'antd/lib/table'
import axios from 'axios'
import React, { useEffect, useState } from 'react'
import { PageResp, R, Student, StudentQueryForm } from '../model/Student'
import A6Delete from './A6Delete'
import A6Insert from './A6Insert'
import A6SelectedDelete from './A6SelectedDelete'
import A6Update from './A6Update'

const { Option } = Select

export default function A6() {
  // ... 省略

  // -------------- 删除选中功能开始 -------------
  const [ids, setIds] = useState<React.Key[]>([])
  function onIdsChange(ids:React.Key[]) {
    // console.log(ids)
    setIds(ids)
  }
  function onDeleteSelectedSuccess() {
    setForm((old)=>{
      return {...old}
    })
    setIds([])
  }
  // -------------- 删除选中功能结束 -------------
  return (
    <div>
      <A6Insert
        open={insertOpen}
        student={insertForm}
        onSuccess={onInsertSuccess}
        onCancel={onInsertCancel}></A6Insert>
      <A6Update
        open={updateOpen}
        student={updateForm}
        onSuccess={onUpdateSuccess}
        onCancel={onUpdateCancel}></A6Update>
      <div>
        <Space>
          <!-- ... 省略 -->
          <A6SelectedDelete ids={ids} onSuccess={onDeleteSelectedSuccess}></A6SelectedDelete>
        </Space>
      </div>
      <Table
        rowSelection={{
          selectedRowKeys: selectedKeys,
          onChange: onSelectChange,
        }}
        columns={columns}
        dataSource={students}
        rowKey='id'
        loading={loading}
        pagination={pagination}
        onChange={onTableChange}></Table>
    </div>
  )
}

useRequest​

安装

npm install ahooks

使用

import { useRequest } from 'ahooks'
import { Table } from 'antd'
import { ColumnsType } from 'antd/lib/table'
import axios from 'axios'
import { Student, R } from '../model/Student'

export default function A3() {
  function getStudents() {
    return axios.get<R<Student[]>>('http://localhost:8080/api/students')
  }

  const { loading, data } = useRequest(getStudents)

  const columns: ColumnsType<Student> = [
    {
      title: '编号',
      dataIndex: 'id',
    },
    {
      title: '姓名',
      dataIndex: 'name',
    },
    {
      title: '性别',
      dataIndex: 'sex',
    },
    {
      title: '年龄',
      dataIndex: 'age',
    },
  ]

  return (
    <Table
      dataSource={data?.data.data}
      columns={columns}
      rowKey='id'
      loading={loading}
      pagination={{ hideOnSinglePage: true }}></Table>
  )
}

useAndtTable​

import { useAntdTable } from 'ahooks'
import { Table } from 'antd'
import { ColumnsType } from 'antd/lib/table'
import axios from 'axios'
import { Student, R } from '../model/Student'

interface PageResp<T> {
  total: number
  list: T[]
}

interface PageReq {
  current: number
  pageSize: number
  sorter?: any
  filter?: any
}

export default function A3() {
  async function getStudents({ current, pageSize }: PageReq) {
    const resp = await axios.get<R<PageResp<Student>>>(
      `http://localhost:8080/api/students/q?page=${current}&size=${pageSize}`
    )
    return resp.data.data
  }

  const { tableProps } = useAntdTable(getStudents, {
    defaultParams: [{ current: 1, pageSize: 5 }],
  })
  console.log(tableProps)

  const columns: ColumnsType<Student> = [
    {
      title: '编号',
      dataIndex: 'id',
    },
    {
      title: '姓名',
      dataIndex: 'name',
    },
    {
      title: '性别',
      dataIndex: 'sex',
    },
    {
      title: '年龄',
      dataIndex: 'age',
    },
  ]

  return <Table {...tableProps} columns={columns} rowKey='id'></Table>
}

2) MobX​

介绍​

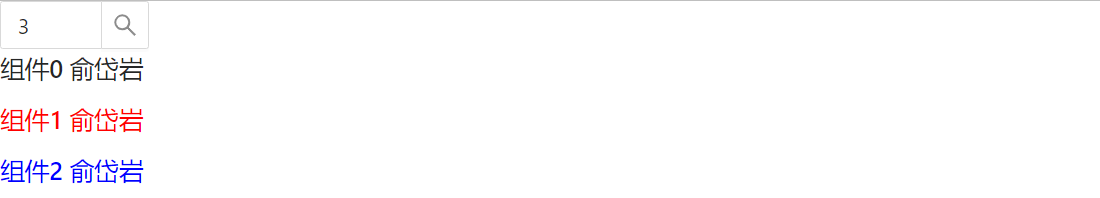

需求，组件0 改变了数据，其它组件也想获得改变后的数据，如图所示

image-20221025104453534

这种多个组件之间要共享状态数据，useState 就不够用了，useContext 也不好用了

能够和 react 配合使用的状态管理库有

  • MobX
  • Redux

其中 Redux API 非常难以使用，这里选择了更加符合人类习惯的 MobX，它虽然采用了面向对象的语法，但也能和函数式的代码很好地结合

文档​

安装​

npm install mobx mobx-react-lite
  • mobx 目前版本是 6.x
  • mobx-react-lite 目前版本是 3.x

名词​

Action, State, View

  • Actions 用来修改状态数据的方法
  • Observable state 状态数据，可观察
  • Derived values 派生值，也叫 Computed values 计算值，会根据状态数据的改变而改变，具有缓存功能
  • Reactions 状态数据发生变化后要执行的操作，如 react 函数组件被重新渲染

使用​

首先，定义一个在函数之外存储状态数据的 store，它与 useState 不同：

  • useState 里的状态数据是存储在每个组件节点上，不同组件之间没法共享
  • 而 MobX 的 store 就是一个普通 js 对象，只要保证多个组件都访问此对象即可
import axios from 'axios'
import { makeAutoObservable } from 'mobx'
import { R, Student } from '../model/Student'

class StudentStore {
  student: Student = { name: '' }

  constructor() {
    makeAutoObservable(this)
  }

  async fetch(id: number) {
    const resp = await axios.get<R<Student>>(
      `http://localhost:8080/api/students/${id}`
    )
    runInAction(() => {
      this.student = resp.data.data
    })
  }

  get print() {
    const first = this.student.name.charAt(0)
    if (this.student.sex === '男') {
      return first.concat('大侠')
    } else if (this.student.sex === '女') {
      return first.concat('女侠')
    } else {
      return ''
    }
  }
}

export default new StudentStore()

其中 makeAutoObservable 会

  • 将对象的属性 student 变成 Observable state，即状态数据
  • 将对象的方法 fetch 变成 Action，即修改数据的方法
  • 将 get 方法变成 Computed values

在异步操作里为状态属性赋值，需要放在 runInAction 里，否则会有警告错误

使用 store，所有使用 store 的组件，为了感知状态数据的变化，需要用 observer 包装，对应着图中 reactions

import Search from 'antd/lib/input/Search'
import { observer } from 'mobx-react-lite'
import studentStore from '../store/StudentStore'
import A71 from './A71'
import Test2 from './Test2'

const A7 = () => {
  return (
    <div>
      <Search
        placeholder='input search text'
        onSearch={(v) => studentStore.fetch(Number(v))}
        style={{ width: 100 }}
      />
      <h3>组件0 {studentStore.student.name}</h3>
      <A71></A71>
      <A72></A72>
    </div>
  )
}

export default observer(A7)

其它组件

import { observer } from 'mobx-react-lite'
import studentStore from '../store/StudentStore'

const A71 = () =>{
  return <h3 style={{color:'red'}}>组件1 {studentStore.student.name}</h3>
}

export default observer(A71)
import { observer } from 'mobx-react-lite'
import studentStore from '../store/StudentStore'

const A72 = () =>{
  return <h3 style={{color:'red'}}>组件1 {studentStore.student.name}</h3>
}

export default observer(A72)

注解方式​

import { R, Student } from "../model/Student";
import { action, computed, makeAutoObservable, makeObservable, observable, runInAction } from 'mobx'
import axios from "axios";

class StudentStore {
  // 属性 - 对应状态数据 observable state
  @observable student: Student = { id: 0, name: '' }
  // 方法 - 对应 action 方法
  @action setName(name: string) {
    this.student.name = name
  }
  @action async fetch(id: number) {
    const resp = await axios.get<R<Student>>(`http://localhost:8080/api/students/${id}`)
    runInAction(() => {
      this.student = resp.data.data
    })
  }
  // get 方法 - 对应 derived value
  @computed get displayName() {
    const first = this.student.name.charAt(0)
    if (this.student.sex === '男') {
      return first + '大侠'
    } else if (this.student.sex === '女') {
      return first + '女侠'
    } else {
      return ''
    }
  }
  // 构造器
  constructor() {
    makeObservable(this)
  }
}

export default new StudentStore()

需要在 tsconifg.json 中加入配置

{
  "compilerOptions": {
    // ...
    "experimentalDecorators": true
  }
}

3) React Router​

安装​

npm install react-router-dom
  • 目前版本是 6.x

使用​

新建文件 src/router/router.tsx

import { lazy } from 'react'
import { Navigate, RouteObject, useRoutes } from 'react-router-dom'

export function load(name: string) {
  const Page = lazy(() => import(`../pages/${name}`))
  return <Page></Page>
}

const staticRoutes: RouteObject[] = [
  { path: '/login', element: load('A8Login') },
  {
    path: '/',
    element: load('A8Main'),
    children: [
      { path: 'student', element: load('A8MainStudent') },
      { path: 'teacher', element: load('A8MainTeacher') },
      { path: 'user', element: load('A8MainUser') }
    ],
  },
  { path: '/404', element: load('A8Notfound') },
  { path: '/*', element: <Navigate to={'/404'}></Navigate> },
]

export default function Router() {
  return useRoutes(staticRoutes)
}

index.tsx 修改为

import ReactDOM from 'react-dom/client';
import './index.css';
import { ConfigProvider } from 'antd';
import zhCN from 'antd/es/locale/zh_CN'

import { BrowserRouter } from 'react-router-dom';
import Router from './router/router';

const root = ReactDOM.createRoot(
  document.getElementById('root') as HTMLElement
);

root.render(
  <ConfigProvider locale={zhCN}>
    <BrowserRouter>
      <Router></Router>
    </BrowserRouter>
  </ConfigProvider>
)

A8Main 的代码

import { Layout } from "antd";
import { Link, Outlet } from "react-router-dom";

export default function A8Main () {
  return <Layout>
    <Layout.Header>头部导航</Layout.Header>
    <Layout>
      <Layout.Sider>侧边导航
        <Link to='/student'>学生管理</Link>
        <Link to='/teacher'>教师管理</Link>
        <Link to='/user'>用户管理</Link>
      </Layout.Sider>
      <Layout.Content>
        <Outlet></Outlet>
      </Layout.Content>
    </Layout>
  </Layout>
}
  1. Navigate 的作用是重定向
  2. load 方法的作用是懒加载组件，更重要的是根据字符串找到真正的组件，这是动态路由所需要的
  3. children 来进行嵌套路由映射，嵌套路由在跳转后，并不是替换整个页面，而是用新页面替换父页面的 Outlet 部分

动态路由​

路由分成两部分：

  • 静态路由，固定的部分，如主页、404、login 这几个页面
  • 动态路由，变化的部分，经常是主页内的嵌套路由，比如 Student、Teacher 这些

动态路由应该是根据用户登录后，根据角色的不同，从后端服务获取，因为这些数据是变化的，所以用 mobx 来管理

import axios from 'axios'
import { makeAutoObservable, runInAction } from 'mobx'
import { Navigate, RouteObject } from 'react-router-dom'
import { MenuAndRoute, R, Route } from '../model/Student'
import { load } from '../router/MyRouter'

class RoutesStore {
  dynamicRoutes: Route[]

  async fetch(username: string) {
    const resp = await axios.get<R<MenuAndRoute>>(
      `http://localhost:8080/api/menu/${username}`
    )
    runInAction(() => {
      this.dynamicRoutes = resp.data.data.routeList
      localStorage.setItem('dynamicRoutes', JSON.stringify(this.dynamicRoutes))
    })
  }

  constructor() {
    makeAutoObservable(this)
    const r = localStorage.getItem('dynamicRoutes')
    this.dynamicRoutes = r ? JSON.parse(r) : []
  }

  reset() {
    this.dynamicRoutes = []
    localStorage.removeItem('dynamicRoutes')
  }

  get routes() {
    const staticRoutes: RouteObject[] = [
      { path: '/login', element: load('A8Login') },
      { path: '/', element: load('A8Main') },
      { path: '/404', element: load('A8Notfound') },
      { path: '/*', element: <Navigate to={'/404'}></Navigate> },
    ]
    const main = staticRoutes[1]

    main.children = this.dynamicRoutes.map((r) => {
      console.log(r.path, r.element)
      return {
        path: r.path,
        element: load(r.element),
      }
    })
    return staticRoutes
  }
}

export default new RoutesStore()
  • 其中用 localStorage 进行了数据的持久化，避免刷新后丢失数据

MyRouter 文件修改为

import { observer } from 'mobx-react-lite'
import { lazy } from 'react'
import { Navigate, RouteObject, useRoutes } from 'react-router-dom'
import RoutesStore from '../store/RoutesStore'

// 把字符串组件 => 组件标签
export function load(name: string) {
  // A8Login
  const Page = lazy(() => import(`../pages/${name}`))
  return <Page></Page>
}

// 路由对象
function MyRouter() {
  const router = useRoutes(RoutesStore.routes)
  return router
}

export default observer(MyRouter)

注意导入 router 对象时，用 observer 做了包装，这样能够在 store 发生变化时重建 router 对象

动态菜单​

图标要独立安装依赖

npm install @ant-design/icons

图标组件，用来将字符串图标转换为标签图标

import * as icons from '@ant-design/icons'

interface Module {
  [p: string]: any
}

const all: Module = icons

export default function Icon({ name }: { name: string }) {
  const Icon = all[name]
  return <Icon></Icon>
}

修改 RoutesStore.tsx

import axios from 'axios'
import { makeAutoObservable, runInAction } from 'mobx'
import { Link, Navigate, RouteObject } from 'react-router-dom'
import { Menu, MenuAndRoute, R, Route } from '../model/Student'
import { load } from '../router/MyRouter'
import Icon from './Icon'

function convertMenu(m: Menu): any {
  const Label = m.routePath ? <Link to={m.routePath}>{m.label}</Link> : m.label
  return {
    label: Label,
    key: m.key,
    icon: <Icon name={m.icon}></Icon>,
    children: m.children && m.children.map(convertMenu)
  }
}

class RoutesStore {
  // 动态部分
  dynamicRoutes: Route[] = []
  dynamicMenus: Menu[] = []

  async fetch(username: string) {
    const resp = await axios.get<R<MenuAndRoute>>(
      `http://localhost:8080/api/menu/${username}`
    )
    runInAction(() => {
      this.dynamicRoutes = resp.data.data.routeList
      localStorage.setItem('dynamicRoutes', JSON.stringify(this.dynamicRoutes))

      this.dynamicMenus = resp.data.data.menuTree
      localStorage.setItem('dynamicMenus', JSON.stringify(this.dynamicMenus))
    })
  }

  get menus() {
    return this.dynamicMenus.map(convertMenu)
  }

  get routes() {
    const staticRoutes: RouteObject[] = [
      { path: '/login', element: load('A8Login') },
      { path: '/', element: load('A8Main'), children: [] },
      { path: '/404', element: load('A8Notfound') },
      { path: '/*', element: <Navigate to={'/404'}></Navigate> },
    ]
    staticRoutes[1].children = this.dynamicRoutes.map((r) => {
      return {
        path: r.path,
        element: load(r.element),
      }
    })
    return staticRoutes
  }

  constructor() {
    makeAutoObservable(this)
    const json = localStorage.getItem('dynamicRoutes')
    this.dynamicRoutes = json ? JSON.parse(json) : []

    const json2 = localStorage.getItem('dynamicMenus')
    this.dynamicMenus = json2 ? JSON.parse(json2) : []
  }

  reset() {
    localStorage.removeItem('dynamicRoutes')
    this.dynamicRoutes = []
    localStorage.removeItem('dynamicMenus')
    this.dynamicMenus = []
  }
}

export default new RoutesStore()

其中 convertMenu 为核心方法，负责将服务器返回的 Menu 转换成 antd Menu 组件需要的 Menu

使用

<Menu items={RoutesStore.menus} mode='inline' theme="dark"></Menu>

跳转若发生错误，可能是因为组件懒加载引起的，需要用 Suspense 解决

root.render(
  <ConfigProvider locale={zhCN}>
    <BrowserRouter>
      <Suspense fallback={<h3>加载中...</h3>}>
        <MyRouter></MyRouter>
      </Suspense>
    </BrowserRouter>
  </ConfigProvider>
)

登录​

import { ItemType } from 'antd/lib/menu/hooks/useItems'
import axios from 'axios'
import { makeAutoObservable, runInAction } from 'mobx'
import { Link, Navigate, RouteObject } from 'react-router-dom'
import { LoginReq, LoginResp, Menu, MenuAndRoute, R, Route } from '../model/Student'
import { load } from '../router/MyRouter'
import Icon from './Icon'

function convertMenu(m: Menu): ItemType {
  const Label = m.routePath? <Link to={m.routePath}>{m.label}</Link> : m.label
  return {
    key: m.key,
    label: Label,
    icon: <Icon name={m.icon}></Icon>,
    children: m.children && m.children.map(convertMenu)
  }
}

class RoutesStore {
  // 动态部分
  dynamicRoutes: Route[] = []
  dynamicMenus: Menu[] = []

  token: string = ''
  state: string = 'pending' // 取值 pending done error
  message: string = '' // 取值: 1. 空串 正常  2. 非空串 错误消息

  async login(loginReq: LoginReq) {
    this.state = 'pending'
    this.message = ''
    const resp1 = await axios.post<R<LoginResp>>(
      'http://localhost:8080/api/loginJwt',
      loginReq
    )
    if(resp1.data.code === 999) {
      const resp2 = await axios.get<R<MenuAndRoute>>(
        `http://localhost:8080/api/menu/${loginReq.username}`
      )
      runInAction(()=>{
        this.token = resp1.data.data.token
        localStorage.setItem('token', this.token)

        this.dynamicRoutes = resp2.data.data.routeList
        localStorage.setItem('dynamicRoutes', JSON.stringify(this.dynamicRoutes))

        this.dynamicMenus = resp2.data.data.menuTree
        localStorage.setItem('dynamicMenus', JSON.stringify(this.dynamicMenus))

        this.state = 'done'
      })
    } else {
      runInAction(()=>{
        this.message = resp1.data.message || '未知错误'
        this.state = 'error'
      })
    }
  }

  async fetch(username: string) {
    const resp = await axios.get<R<MenuAndRoute>>(
      `http://localhost:8080/api/menu/${username}`
    )
    runInAction(() => {
      this.dynamicRoutes = resp.data.data.routeList
      localStorage.setItem('dynamicRoutes', JSON.stringify(this.dynamicRoutes))

      this.dynamicMenus = resp.data.data.menuTree
      localStorage.setItem('dynamicMenus', JSON.stringify(this.dynamicMenus))
    })
  }

  get routes() {
    const staticRoutes: RouteObject[] = [
      { path: '/login', element: load('A8Login') },
      { path: '/', element: load('A8Main'), children: [] },
      { path: '/404', element: load('A8Notfound') },
      { path: '/*', element: <Navigate to={'/404'}></Navigate> },
    ]
    staticRoutes[1].children = this.dynamicRoutes.map((r) => {
      return {
        path: r.path,
        element: load(r.element),
      }
    })
    return staticRoutes
  }

  get menus() {
    return this.dynamicMenus.map(convertMenu)
  }

  constructor() {
    makeAutoObservable(this)
    const json = localStorage.getItem('dynamicRoutes')
    this.dynamicRoutes = json ? JSON.parse(json) : []

    const json1 = localStorage.getItem('dynamicMenus')
    this.dynamicMenus = json1 ? JSON.parse(json1) : []

    const token = localStorage.getItem('token')
    this.token = token ?? ''

    this.message = ''
    this.state = 'pending'
  }

  reset() {
    localStorage.removeItem('dynamicRoutes')
    this.dynamicRoutes = []

    localStorage.removeItem('dynamicMenus')
    this.dynamicMenus = []

    localStorage.removeItem('token')
    this.token = ''

    this.message = ''
    this.state = 'pending'
  }
}

export default new RoutesStore()

登录页面

function A8Login() {
  function onFinish(values: { username: string; password: string }) {
    RoutesStore.login(values)
  }

  const nav = useNavigate()
  useEffect(() => {
    if (RoutesStore.state === 'done') {
      nav('/')
    } else if (RoutesStore.state === 'error') {
      message.error(RoutesStore.message)
    }
  }, [RoutesStore.state])

  // ...
}

export default observer(A8Login)
  • 用 useNavigate() 返回的函数跳转的代码不能包含在函数式组件的主逻辑中，只能放在
    • 其它事件处理函数中
    • 写在副作用函数 useEffect 之中

注销、欢迎词、登录检查​

Store 中增加 get username 方法

class RoutesStore {
  // ...

  // eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJhZG1pbiJ9.-l-MjMPGJVOf3zoIJgoqpV3LWoqvCCgcaI1ga86ismU
  get username() {
    if(this.token.length === 0) {
      return ''
    }
    const json = atob(this.token.split('.')[1])
    return JSON.parse(json).sub
  }

  // ...
}
  • token 的前两部分都可以解码出来，其中 [1] 就是 token 的内容部分

主页组件改为

import { Button, Layout, Menu } from 'antd'
import { observer } from 'mobx-react-lite'
import { useEffect } from 'react'
import { Navigate, Outlet, useNavigate } from 'react-router-dom'
import RoutesStore from '../store/RoutesStore'

function A8Main() {
  const nav = useNavigate()

  function onClick() {
    RoutesStore.reset()
    nav('/login')
  }

  /* useEffect(()=>{
    if(RoutesStore.username === '') {
      nav('/login')
    }
  }, []) */

  if(RoutesStore.username === '') {
    return <Navigate to='/login'></Navigate>
  }

  return (
    <Layout>
      <Layout.Header>
        <span>欢迎您【{RoutesStore.username}】</span>
        <Button size='small' onClick={onClick}>注销</Button>
      </Layout.Header>
      <Layout>
        <Layout.Sider>
          <Menu items={RoutesStore.menus} theme='dark' mode='inline'></Menu>
        </Layout.Sider>
        <Layout.Content>
          <Outlet></Outlet>
        </Layout.Content>
      </Layout>
    </Layout>
  )
}

export default observer(A8Main)
  • 这个例子中推荐用 Navigate 来完成跳转
  • /student，/teacher 等路由不需要检查，因为登录成功后才有
